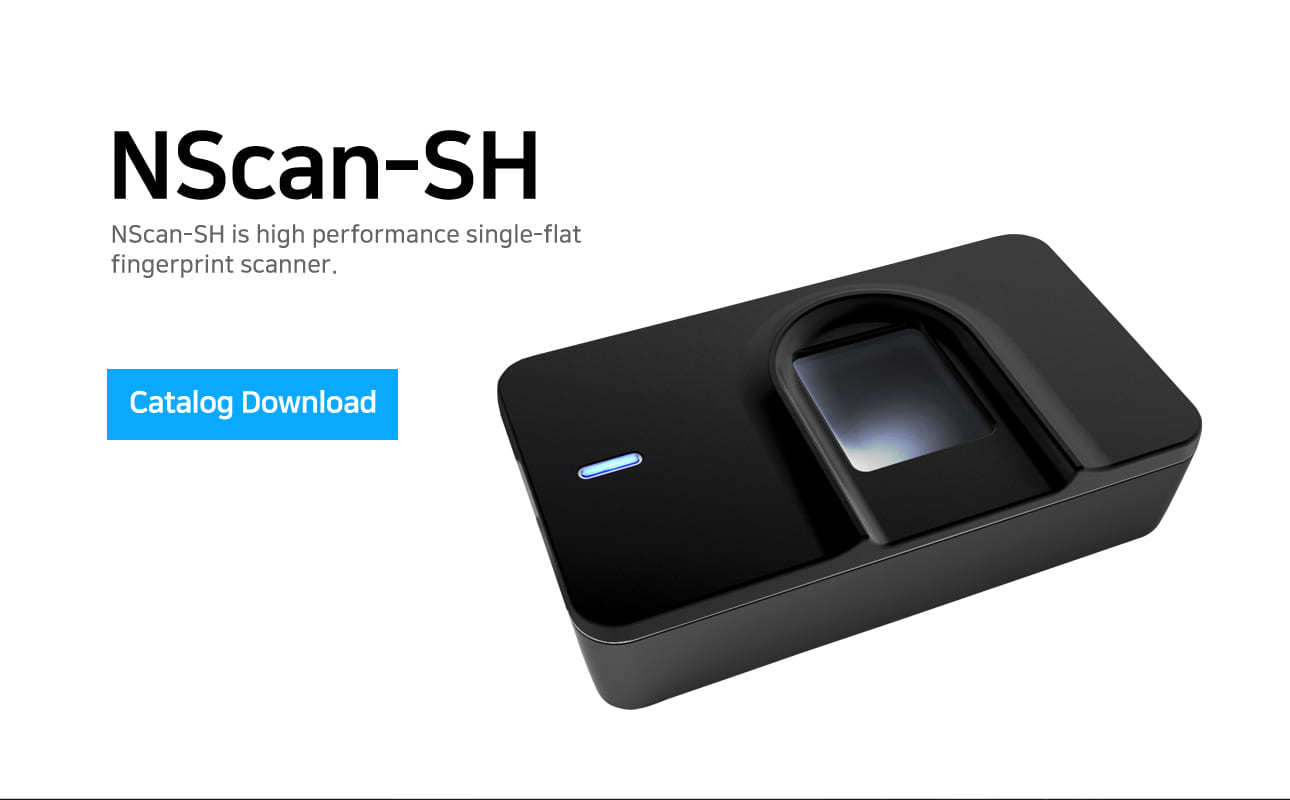

HOME > Products > NScan-SH



Ergonomic Compact Design
USB Connection
   - USB 2.0 compatible interface, plug and play device
Auto-on Function
Patented Fake Finger Detection
Superior Matching Engine
   - 1st rank in FVC(Fingerprint Verification Competition)
Advanced Optical Technology
   - Sensor resistant to scratches, impact, vibration and electrostatic shock
International Standard Image Format and Interfaces
   - WSQ compression
   - ISO 19794-2/4, ANSI 378, NFIQ
Fingerprint Type Optical
Resolution 500dpi
Gray Scale 256 gray
Platen Size (W x L) 16.4 X 19.4 mm
Sensing Area (W x L) 13 X 14.8 mm
Auto Sensing O
Speed 25 frames Per second(fps)
Interface USB 2.0
Operating Temperature 0℃ ~ +60℃
Operating Humidity 10 ~ 90%, non-condensing
Dimension (W x H x D) mm 70.4 x 39.8 x 17.6mm
Certifications ROHS,IP65(Sensor Surface),KC,CE,FCC
Image Format WSQ, NFIQ, RAW, BMP
Template Type VIRDI ISO 19794-2, ANSI 378
LFD O
Operating System Microsoft Windows, Android
Card Type X
Opertating Software (S/W Solution) X
Computer security
IT solution(Groupware, etc.)
e-commerce
Security for bank and financial system
Health care system
Substitution for password
