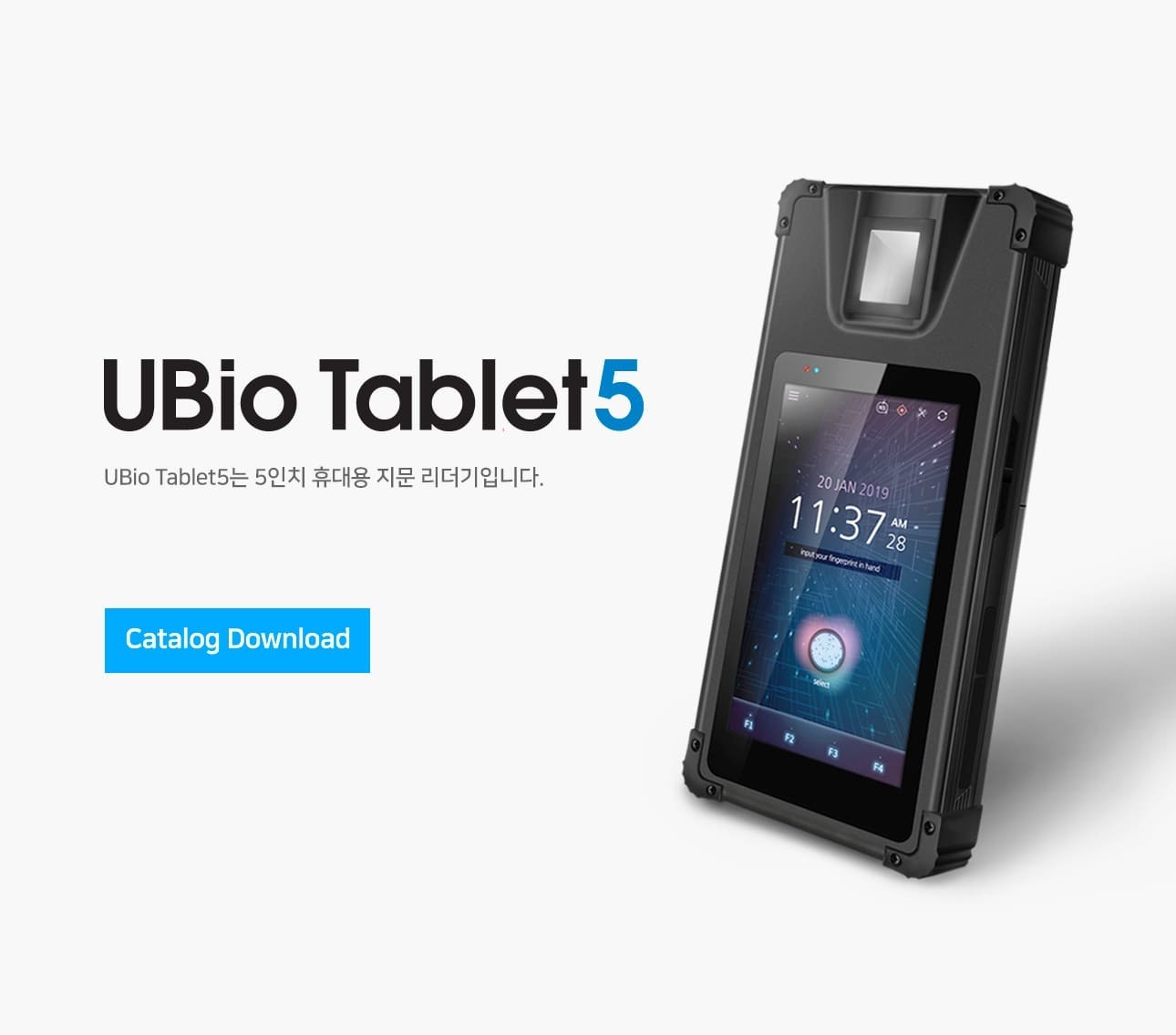

HOME > Products > UBio Tablet5
Sensor Specification
Finger Scanner FAP20 Nsacn-FM Fingerprint Sensor
Fingerprint Type Optical
Resolution 500dpi
Gray Scale 256 gray
Platen Size (W x L) 16.6 x 21.6 mm
Sensing Area (W x L) 16 x 21 mm
Auto Sensing O
Speed 10 frames Per second(fps)
Interface USB 2.0(High Speed)
Operating Temperature -20 ~ 60C
Operating Humidity 10 ~ 90%, non-condensing
Certifications KC,CE,FCC,ROHS,IP65(Sensor Surface),FBI PIV+FAP20
Image Format ISO 19794-4 WSQ, RAW,BMP
Template Type VIRDI, ISO 19794-2, ANSI 378
Tablet Specification
Operating System Android 7.0
CPU MTK6737 ARM-A53 1.1-1.5GHz Quad core 64-bit
Memory 2GB Ram + 16GB ROM (Micro SD Slot expandable up to 32GB) 64MByte DDR2, 4MByte Serial Flash
Display 5 Inchs IPS LCD (1280*720) / G+G Capacitive Multi-Touch Panel
Camera 5MP with Auth Focus
Modem 2G, 3G WCDMA 2100 (Optional: 850/1900), 4G band in B1/B3/B7
Interface RS232(TTL), USB2.0, NFC 13.56MHz
Dimension (W x H x D) 88 x 197 x 27 mm
Weight 400g
Battery 6000mAh
